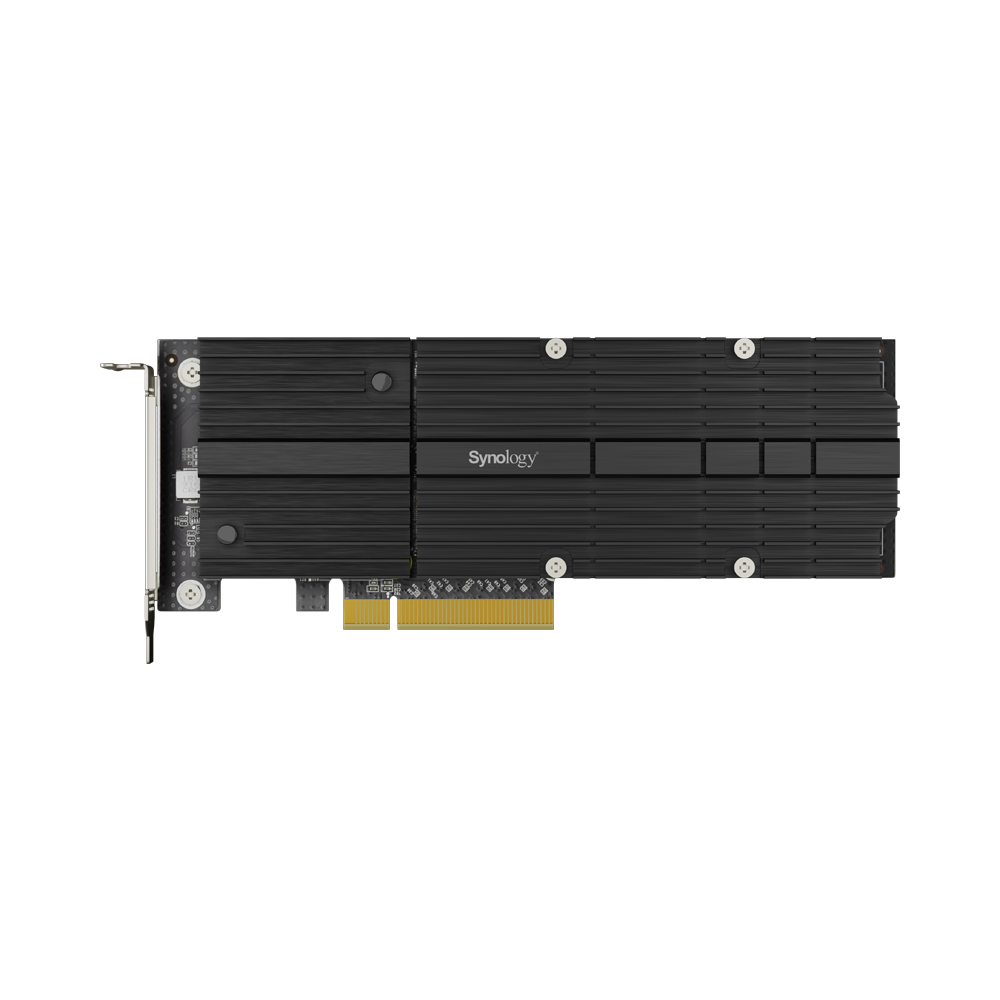

Synology M2D20 Dual-Slot M.2 NVMe SSD Adapter Card for Cache Acceleration

Boost I/O Performance with M.2 NVMe SSD

The Synology M2D20 is an M.2 SSD adapter supporting M.2 NVMe SSDs in both 22110 and 2280 form factors. For those looking to boost the performance and responsiveness of latency-sensitive applications, the M2D20 allows you to make use of M.2 NVMe SSD to accelerate I/O performance without occupying any drive trays. In conjunction with Synology SNV3000 series NVMe SSD, M2D20 provides a reliable and streamlined storage experience for Synology systems.

FEATURES

• Boost Storage Performance for Demanding Workloads – The multi-queue capability of NVMe SSD greatly benefits latency-sensitive applications such as photo indexing, file search and virtualisation deployments
• NVMe Enabled – Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots
• Dedicated Cache Slots – Free up primary drive bays for data storage
• Easy IT Upgrade – Upgrade your existing storage infrastructure efficiently

SPECIFICATIONS

Hardware
• Host Bus Interface: PCIe 3.0 x8
• Bracket Height: Low Profile and Full-Height
• Dimensions (H × W × D): 71.75 × 181.9 × 15.8mm
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH
Storage
• Storage Interface: NVMe

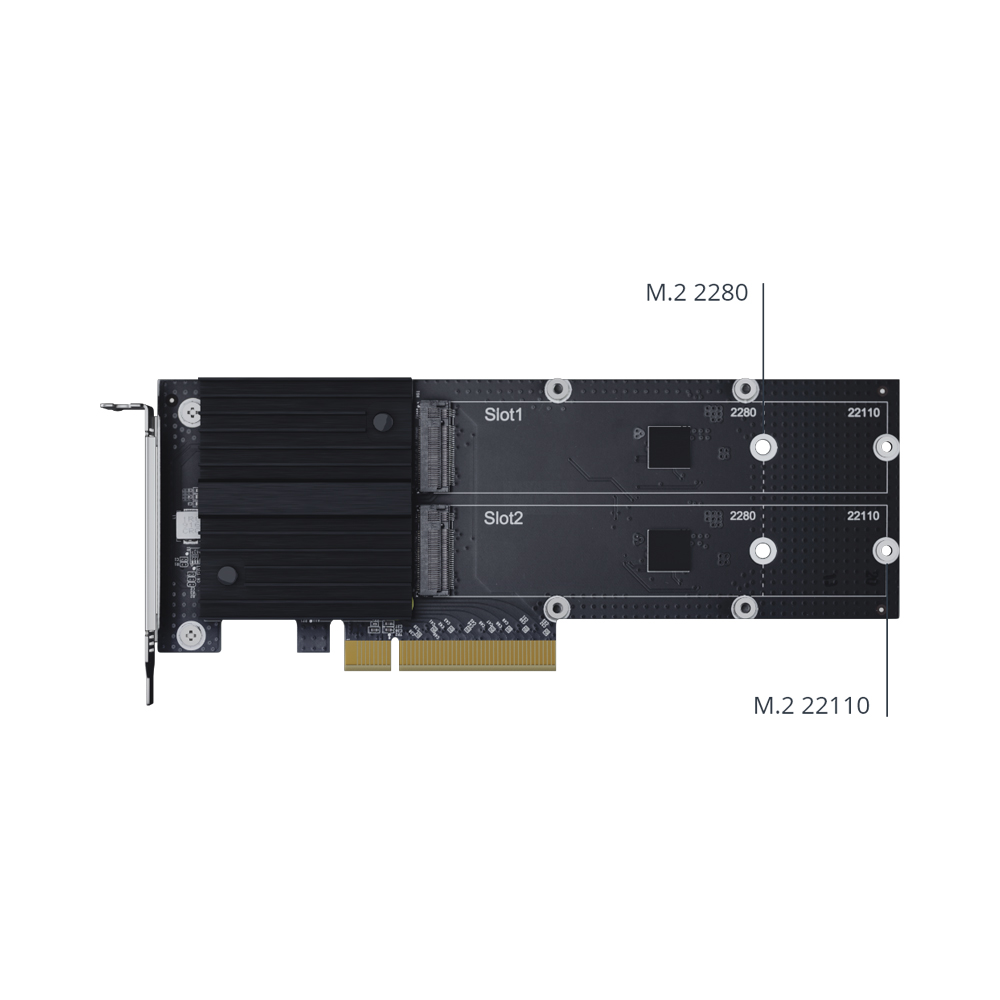

• Supported Form Factor: M.2 22110 / 2280
• Connector Type and Quantity: M-key, 2-Slots
