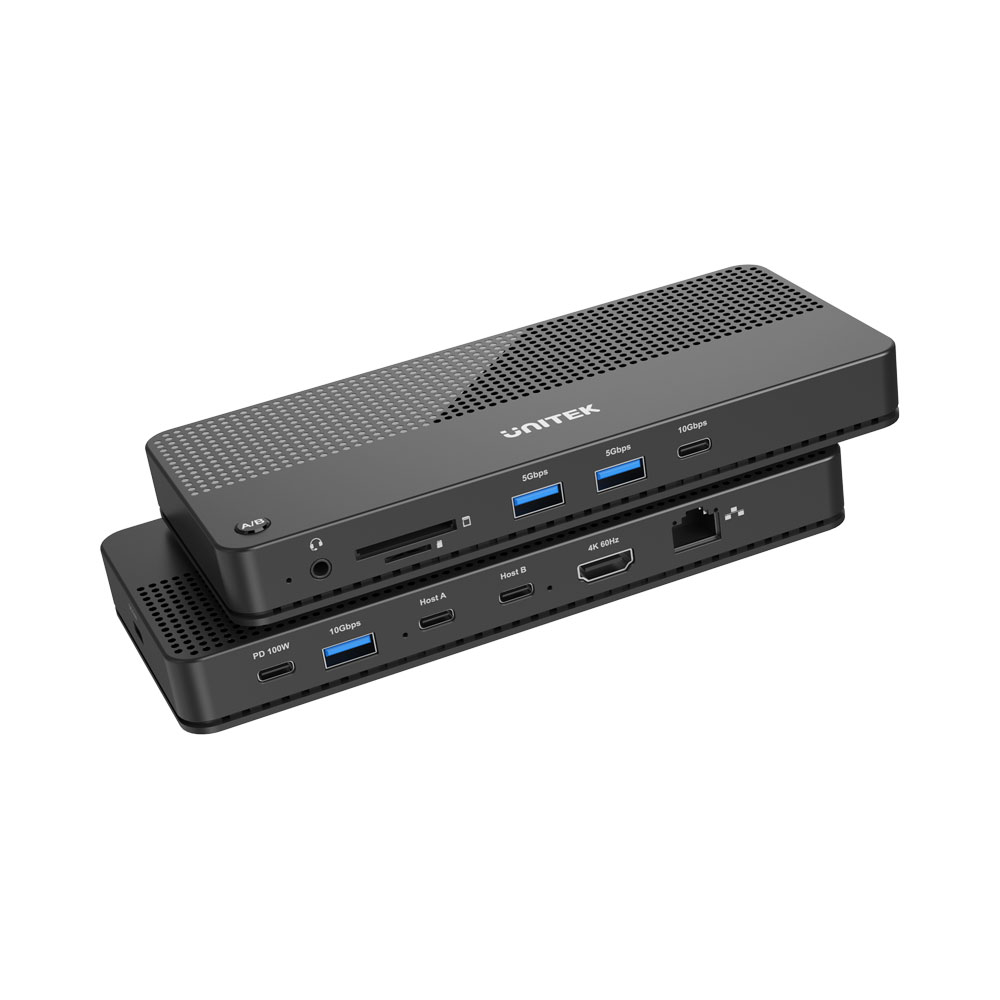

Unitek D1077A USB Type-C 4K KVM Port Replicator with 100W Power Delivery

The Unitek D1077A is a Type‑C 4K KVM port replicator / docking station with built‑in KVM switching and 100 W Power Delivery (PD) capability. It combines the functionality of a dock (for ports, video, charging, etc.) with the ability to switch control of two computers using one keyboard, mouse, and monitor.

FEATURES

• Data Transfer – 2× USB3.0 Type-A 5Gbps and 2× USB3.2 Type-A 10Gbps Data Ports
• Display – Supports 4K @60Hz HDMI
• Reliable Data – Supports RJ45 Gigabit Ethernet
• Built-in SD and TF Slots – For easy access to files from universal SD and Micro SD Memory Cards, reading simultaneously
• Fast Charge Supported – Capable of charging your devices with Power Delivery up to 100W
• One Key Switch – Easily switches between devices by pressing the one-key switch button

SPECIFICATIONS

Ports
2× USB3.2 Type-A 10Gbps
2× USB3.0 Type-A 5Gbps
1× USB Type-C 100W Power Delivery
2× USB Type-C Hosts (A/B)
1× USB Type-C 5V Input
1× HDMI
1× Gigabit RJ45 Ethernet
1× SD Card
1× MicroSD Card
1× 3.5mm Audio
Upstream: USB Type-C 10Gbps
Downstream: USB Type-C 10Gbps
Cable Lengths: 1m
Dimensions: 180 × 80 × 20.5mm
Material: ABS Housing
Colour: Space Grey
