UNITEK V1183A 1080p Wireless HDMI Transmitter & Receiver Kit – Up to 50m

Wireless Full HD Streaming Without Long HDMI Cables.

The UNITEK V1183A Wireless HDMI Transmitter and Receiver Kit streams video and audio from compatible HDMI source devices to televisions, monitors and projectors without requiring a long HDMI cable. Supporting resolutions up to 1920 × 1080 @60Hz, the kit provides wireless transmission over distances of up to 50m in open environments. Dual-band 2.4GHz and 5.0GHz wireless technology helps maintain a stable connection with minimal delay, while plug-and-play operation requires no application installation or existing Wi-Fi network. The receiver provides HDMI and VGA display outputs with a 3.5mm audio connection, while one receiver can pair with up to eight transmitters for convenient source switching in meeting rooms, classrooms and presentation spaces.

FEATURES

• 1080p Full HD Transmission – Streams video and audio at resolutions up to 1920 × 1080 @60Hz

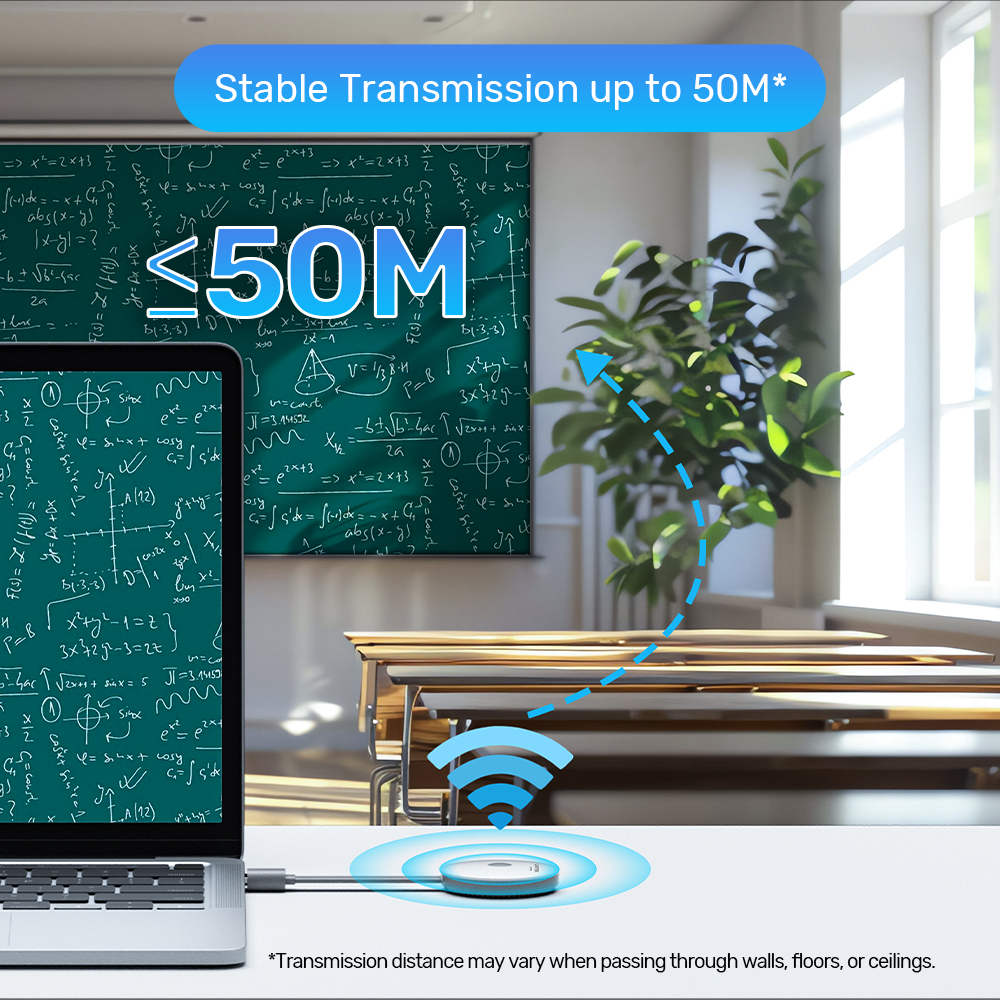

• Up to 50m Wireless Range – Provides extended transmission in open, unobstructed environments
• Dual-Band Wireless Technology – Uses 2.4GHz and 5.0GHz frequency bands for stable signal transmission
• Plug-and-Play Operation – Requires no application installation or connection to an existing Wi-Fi network

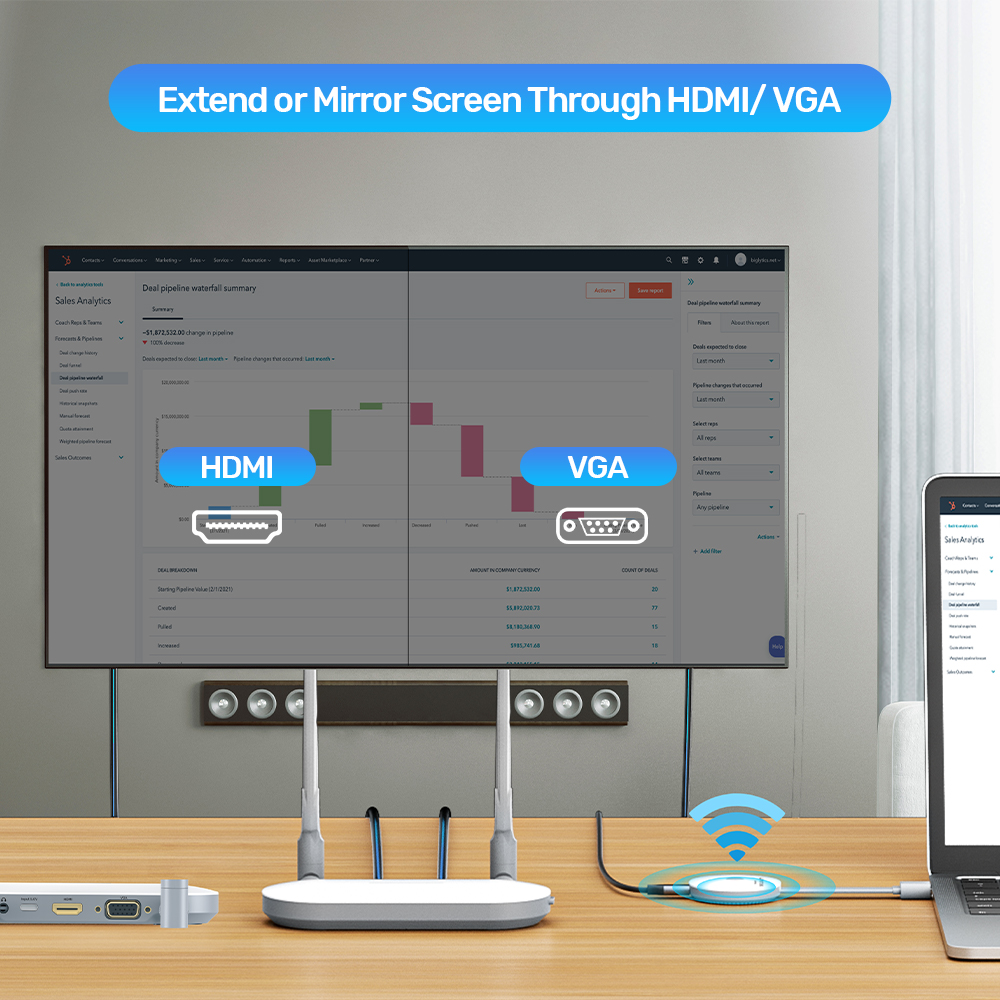

• HDMI and VGA Outputs – Connects the receiver to compatible televisions, monitors and projectors
• 3.5mm Audio Output – Connects compatible external speakers or audio equipment when using VGA
• One-Button Source Control – Disconnect or reconnect transmission using the transmitter function button

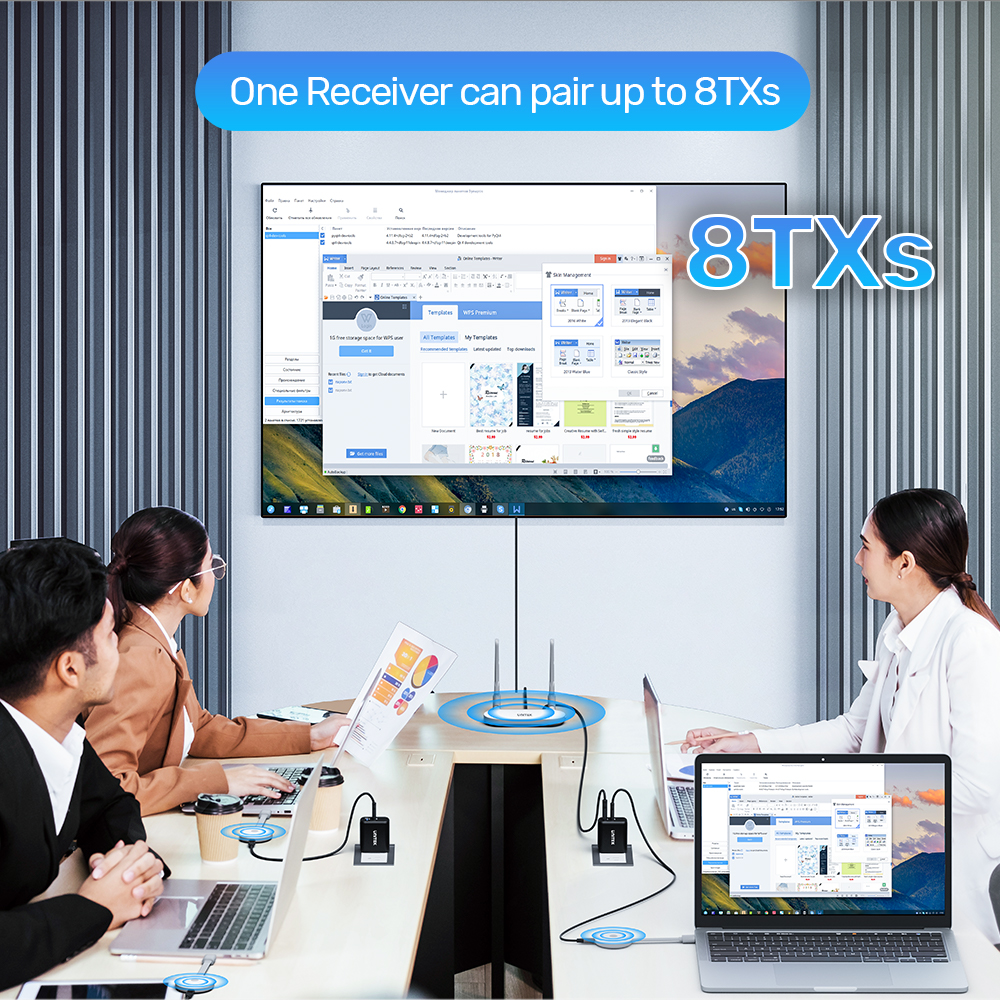

• Multi-Transmitter Support – One receiver can pair with up to eight transmitters for convenient source switching
• Factory-Paired Setup – Transmitter and receiver are paired before shipment for faster installation

SPECIFICATIONS

• Maximum Resolution: 1920 × 1080 @60Hz
• Transmission Distance: Up to 50m
• Wireless Network: 2.4GHz and 5.0GHz
• Transmitter Input: HDMI
• Receiver Video Outputs: HDMI and VGA
• Receiver Audio Output: 3.5mm
• Power Input: 5V 2A via USB Type-C
• Maximum Transmitters per Receiver: 8
• Supported Systems: Windows, macOS, Android and iOS
• Housing Material: ABS
• Colour: White and Grey
• Receiver Dimensions: 150 × 65 × 51mm
• Transmitter Dimensions: 60 × 60 × 13.5mm

NOTES

• A compatible 5V 2A USB power source or power adapter is required
• Transmission distance may be reduced by walls, floors, ceilings, interference and the installation environment
• Additional transmitters are required to use the multi-transmitter function
• Only one paired transmitter can display content through the receiver at a time
