UNITEK S1207A SyncStation Marshmallow M.2 USB3.2 Gen2 Type-C 10Gbps Dual-Bay NVMe SSD Docking Station with Offline Clone

Dual-Drive Access. Standalone Cloning.

The UNITEK S1207A SyncStation Marshmallow M.2 is a dual-bay docking station designed for accessing, managing and duplicating compatible NVMe SSDs. Both drives can be accessed through a USB Type-C connection, while the offline cloning function copies Disk A directly to Disk B without requiring a computer. Its USB3.2 Gen2 host interface supports data-transfer rates of up to 10Gbps, with UASP and TRIM support for efficient drive operation. The station accommodates PCIe Gen4 and Gen3 NVMe SSDs in 2242, 2260 and 2280 sizes. A built-in cooling fan helps control operating temperatures, while the removable dust cover protects installed drives when not in use. Tool-free drive installation, clone-progress indicators and automatic sleep mode provide convenient everyday operation.

FEATURES

• Dual-Bay NVMe Docking – Provides simultaneous computer access to two compatible M.2 NVMe SSDs
• 10Gbps USB Connectivity – USB3.2 Gen2 host interface supports data-transfer rates of up to 10Gbps
• Offline Drive Cloning – Copies Disk A directly to Disk B without requiring a connected computer
• PCIe NVMe Compatibility – Supports compatible PCIe Gen4 and Gen3 NVMe SSDs
• Multiple M.2 Sizes – Accommodates 2242, 2260 and 2280 M.2 form factors
• UASP and TRIM Support – Helps provide efficient data transfers and compatible SSD management
• Built-In Cooling Fan – Promotes airflow around installed SSDs during operation
• Tool-Free Installation – Allows compatible drives to be inserted and removed without installation tools
• Clone-Progress Indicators – Displays cloning progress at 25%, 50%, 75% and 100%
• Protective Dust Cover – Helps reduce dust exposure when the station is not being accessed
• Automatic Sleep Mode – Enters a power-saving state after approximately 30 minutes of inactivity

SPECIFICATIONS

GENERAL

• Drive Bays: 2×
• Material: ABS
• Colour: White

SSD COMPATIBILITY

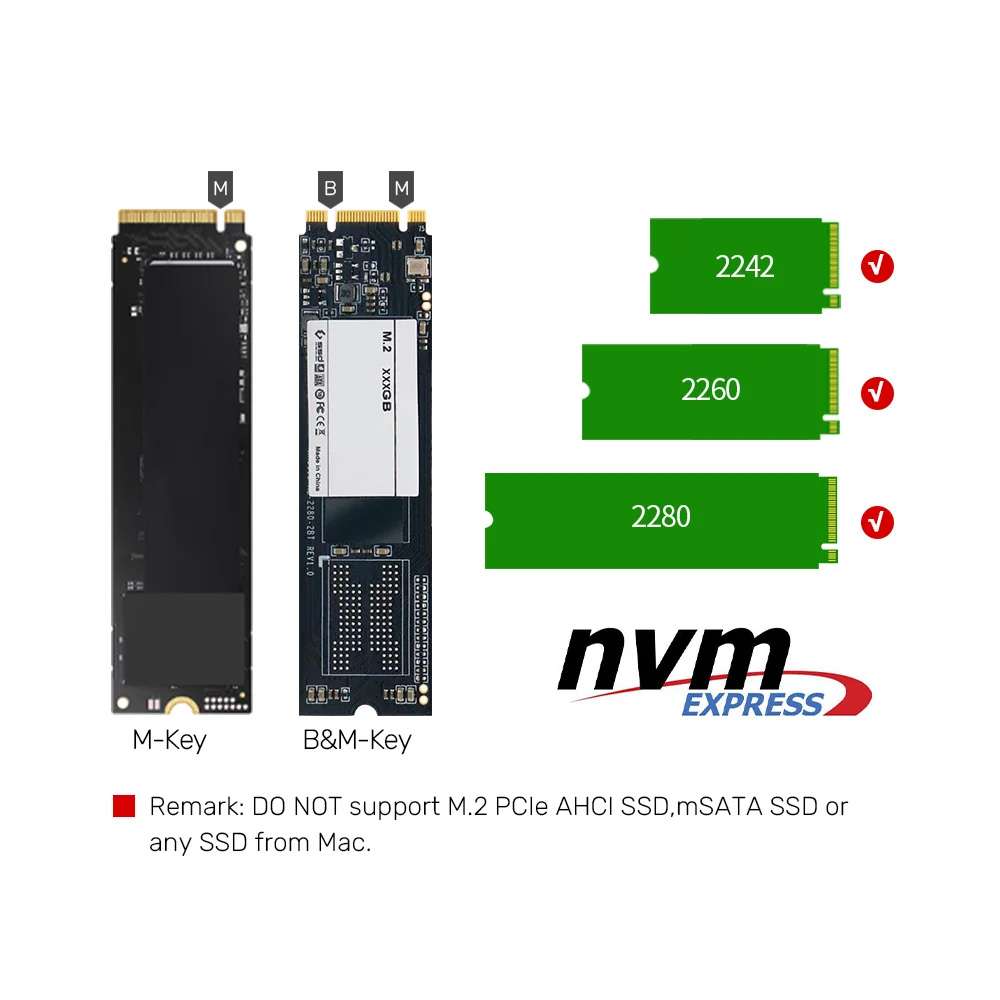

• Supported Drive Type: M.2 PCIe NVMe SSD
• Supported PCIe Generations: PCIe Gen4 and Gen3
• Supported Key Types: M-Key and M+B-Key
• Supported Drive Sizes: 2242, 2260 and 2280
• SATA SSD Support: No

HOST CONNECTION

• Host Interface: USB3.2 Gen2
• Docking Station Port: 1× USB Type-C Female
• Maximum Data-Transfer Rate: Up to 10Gbps
• Included Cable: USB Type-C Male to USB Type-C Male
• Cable Length: 1m
• UASP Support: Yes
• TRIM Support: Yes

OFFLINE CLONING

• Clone Mode: Standalone Offline Cloning
• Clone Direction: Disk A to Disk B
• Computer Required: No
• Destination Drive Requirement: Equal to or Larger Than the Source Drive
• Progress Indicators: 25%, 50%, 75% and 100%

COOLING AND CONTROLS

• Cooling: Built-In Fan
• Drive Protection: Removable Dust Cover
• Installation: Tool-Free
• Automatic Sleep: After Approximately 30 Minutes of Inactivity
• Controls: Clone Button and Power Switch
• Drive Indicators: Disk A and Disk B Status
• Clone Indicator: Four-Stage LED Progress Display
• Base: Slip-Resistant Silicone Mat

POWER

• Power Adapter Input: 100~240V AC, 50/60Hz
• Power Adapter Output: 12V DC 2A, 24W

SYSTEM COMPATIBILITY

• Windows: Windows 10 and Windows 11, 32-bit and 64-bit
• macOS: Mac OS 10.6 or Later
• Linux: Linux Kernel 3.x

PHYSICAL

• Dimensions: 93 × 93 × 132mm

NOTES

• Compatible with M.2 PCIe NVMe SSDs only; M.2 SATA and AHCI SSDs are not supported
• Offline cloning copies the complete contents of Disk A to Disk B and overwrites existing data on the destination drive
• The destination SSD must have a capacity equal to or greater than the source SSD
• Do not remove an installed SSD or disconnect the power adapter while the station is operating, transferring data or cloning
