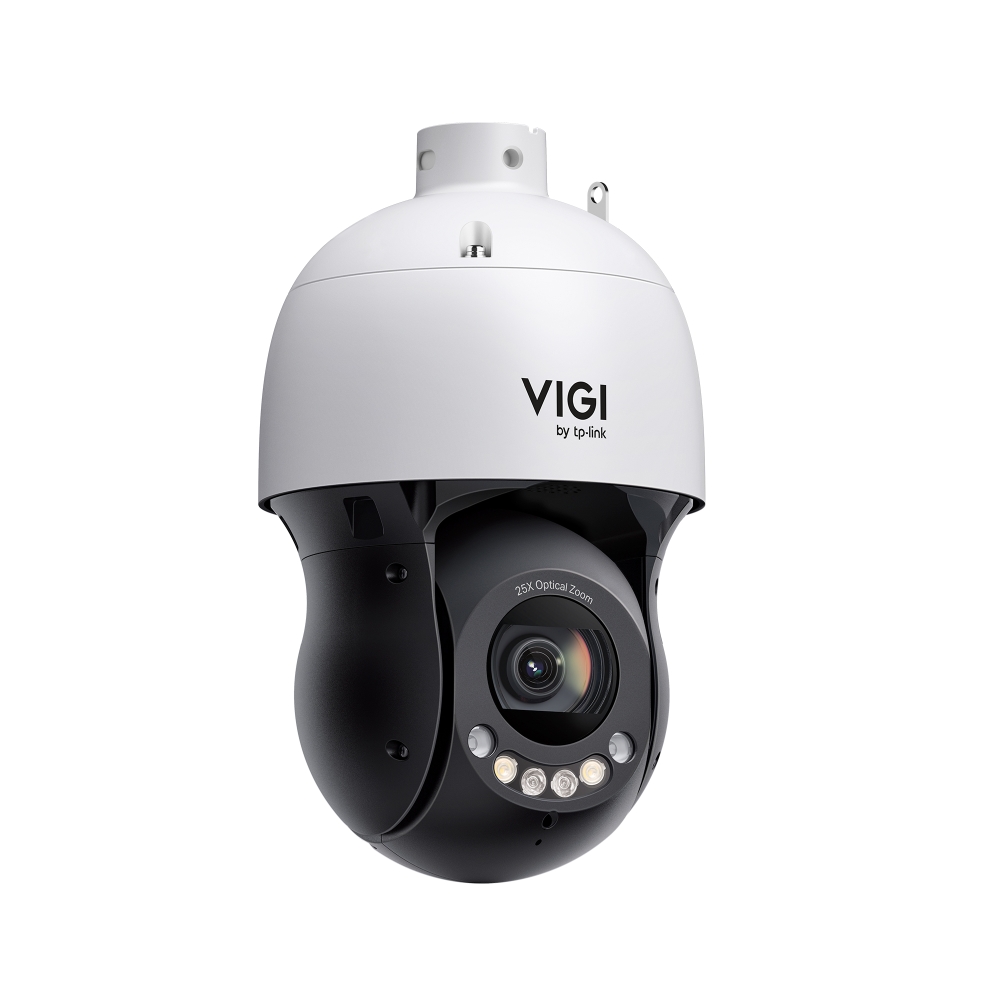

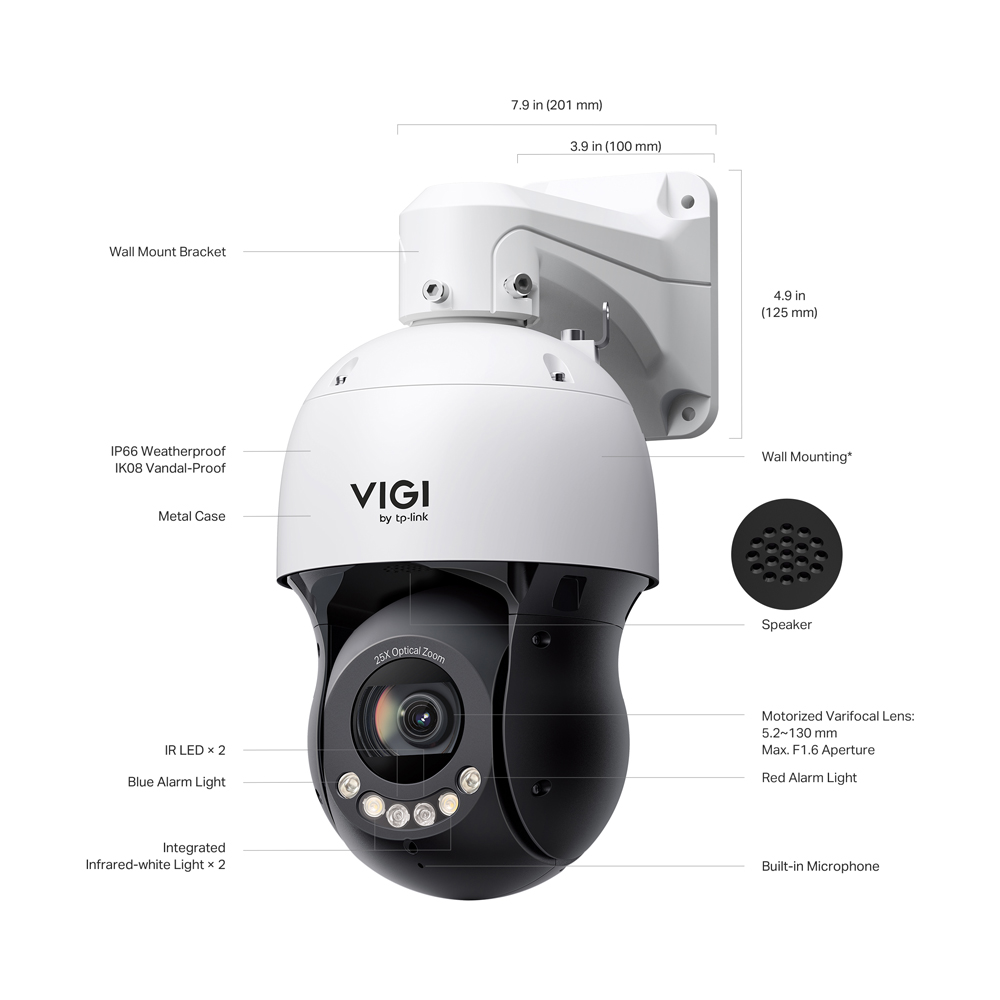

TP-Link VIGI InSight PTZ5425 4MP 25× Full-Colour PoE Speed Dome Camera with Varifocal Lens

Intelligent 360° Surveillance with Powerful Long-Range Detail.

The TP-Link VIGI InSight PTZ5425 combines wide-area surveillance with powerful long-range monitoring for demanding outdoor security environments. Its 4MP sensor captures detailed video at up to 2688 × 1520, while the motorised 5.2~130mm varifocal lens provides 25× optical and 16× digital zoom for clear close-ups at a distance. Intelligent auto tracking follows detected people, vehicles or security events, supported by advanced analytics for faster identification and investigation. Full-colour illumination reaches up to 50m, while infrared night vision extends up to 100m. Red and blue warning lights, a siren and two-way audio provide active deterrence, while PoE support simplifies installation. A metal IP66 and IK08-rated enclosure ensures reliable outdoor operation.

FEATURES

• 4MP High-Resolution Video – Captures detailed footage at up to 2688 × 1520
• 25× Optical Zoom – Provides clear long-range monitoring without sacrificing image detail
• 16× Digital Zoom – Enables additional enlargement for closer examination
• 360° PTZ Coverage – Monitors wide areas with continuous pan and flexible tilt movement
• Intelligent Auto Tracking – Tracks detected people, vehicles and security events automatically
• People and Vehicle Analytics – Supports attribute-based filtering for faster post-event searches
• Smart Detection – Includes intrusion, line-crossing, loitering, region entering and region exiting detection
• Long-Range Night Vision – Provides infrared illumination up to 100m
• Full-Colour Monitoring – White light illumination captures colour detail at distances up to 50m
• Active Deterrence – Uses red and blue flashing lights with an integrated siren to warn intruders
• Two-Way Audio – Built-in microphone and speaker enable remote communication
• Smart Video Enhancement – Includes 120dB WDR, Smart IR, 3D DNR, EIS and Digital Defog
• H.265+ Compression – Reduces storage and bandwidth requirements while maintaining image quality
• PoE Connectivity – Transmits power and data through one compatible network cable
• Durable Outdoor Construction – IP66 weatherproof, IK08 vandal-resistant and protected against 6kV lightning surges

SPECIFICATIONS

CAMERA

• Image Sensor: 1/2.9" Progressive Scan CMOS
• Maximum Resolution: 2688 × 1520
• Maximum Frame Rate: 30fps
• Shutter Speed: 1/3~1/30000s
• Minimum Illumination: 0.005 Lux, 0 Lux with IR or White Light
• Day and Night Mechanism: IR Cut Filter
• Wide Dynamic Range: 120dB
• Signal-to-Noise Ratio: ≥52dB
• Image Enhancement: BLC, 3D DNR, HLC and Smart IR
• Image Stabilisation: Electronic Image Stabilisation
• Defog: Digital Defog
• Privacy Masks: Up to 4
• Regions of Interest: 8

LENS

• Lens Type: Motorised Varifocal Lens
• Focal Length: 5.2~130mm
• Maximum Aperture: F1.6
• Optical Zoom: 25×
• Digital Zoom: 16×
• Horizontal Field of View: 2.30°~57.06°
• Vertical Field of View: 1.31°~32.74°
• Diagonal Field of View: 2.63°~65.01°

PTZ

• Pan Range: 0°~360°
• Tilt Range: -20°~90° with Auto Flip
• Configurable Pan Speed: 0°~160°/s
• Preset Pan Speed: 240°/s
• Configurable Tilt Speed: 0°~120°/s
• Preset Tilt Speed: 200°/s
• Presets: 300
• Patrol Scans: 8, with Up to 8 Presets per Patrol
• Pattern Scans: 16
• PTZ Protocols: Pelco-D, Pelco-P and Self-Adaptive

ILLUMINATION

• Infrared LEDs: 2
• Integrated Infrared and White LEDs: 2
• Infrared Distance: Up to 100m
• White Light Distance: Up to 50m
• Illumination Control: Automatic, Scheduled, Always On or Always Off

SMART DETECTION

• Classification: Human and Vehicle
• Smart Tracking: Human, Vehicle and Event-Triggered Auto Tracking
• Smart Events: Intrusion, Line-Crossing, Region Entering, Region Exiting, Loitering, Human, Vehicle, Abnormal Sound and Scene Change Detection
• Basic Events: Motion Detection, Camera Tampering and Illegal Login Detection
• People and Vehicle Analytics: Supported with Specified VIGI Software
• Active Defence: Red and Blue Warning Lights with Sound Alarm

VIDEO AND AUDIO

• Main Stream Compression: H.265+, H.265, H.264+ and H.264
• Sub-Stream Compression: H.265 and H.264
• Third Stream Compression: H.265, H.264 and MJPEG
• Bit Rate Control: CBR and VBR
• Audio Communication: Two-Way Audio
• Microphone: Built-In, Up to 5m Recording Radius
• Speaker: Built-In
• Audio Interfaces: 1× Input and 1× Output
• Environment Noise Filtering: Supported

NETWORK AND STORAGE

• Network Interface: 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port
• Power over Ethernet: Supported
• ONVIF: Profiles G, S and T
• Management: VIGI App, Web Interface and VIGI Cloud VMS
• Memory Card Slot: Built-In microSD Slot
• Maximum microSD Capacity: 512GB
• Alarm Interfaces: 2× Inputs and 1× Output
• RS-485 Interface: Yes
• Reset Button: Yes

POWER AND ENVIRONMENT

• DC Power: 12V DC ±5%, Maximum 21.6W
• PoE Standard: IEEE 802.3at, Class 4
• Maximum PoE Power: 24.7W
• Weather Protection: IP66
• Vandal Resistance: IK08
• Lightning Protection: 6kV
• Operating Temperature: -30~65°C
• Storage Temperature: -40~65°C
• Operating Humidity: ≤95% RH, Non-Condensing
• Housing Material: Metal

PHYSICAL

• Mounting Type: Wall Mount

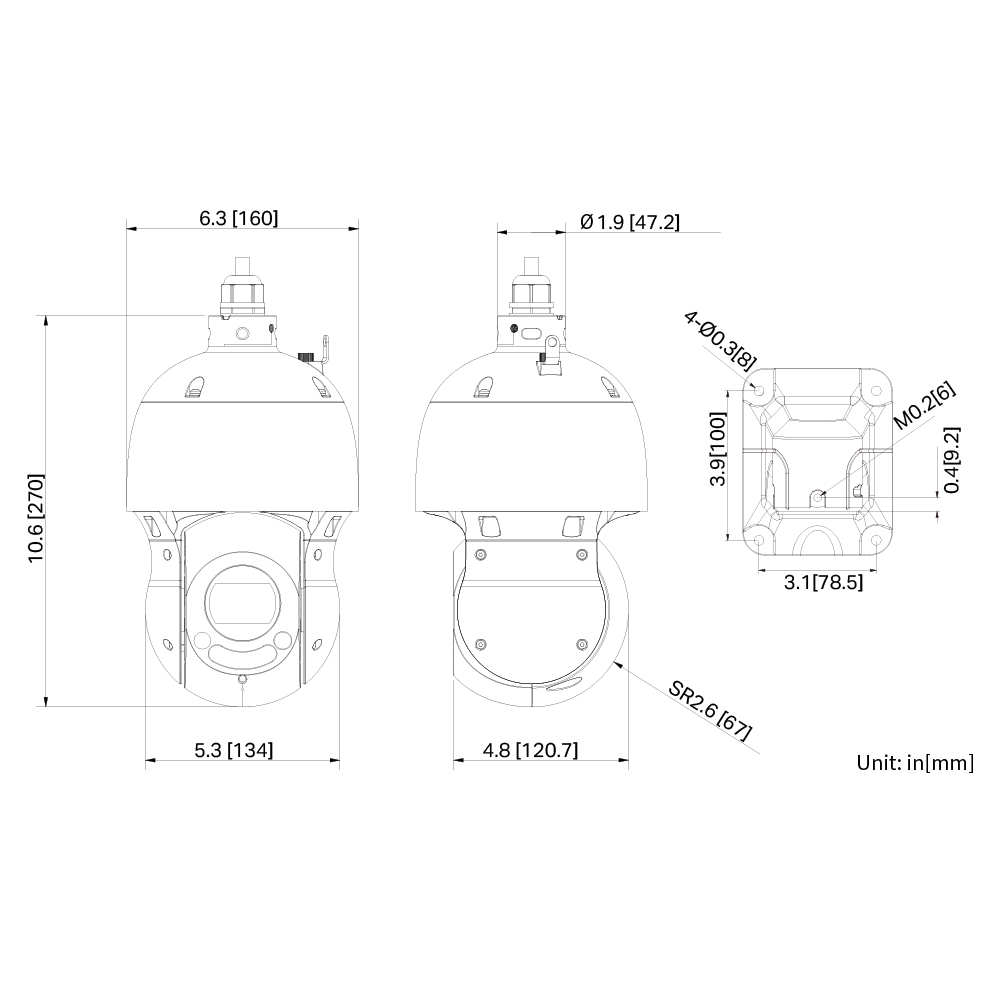

• Dimensions: Ø160 × 270mm
• Net Weight: 2.8kg
• Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08 and ONVIF
