TP-Link TL-WPA4220 TKIT AV600 Powerline Universal Wi-Fi Range Extender 3-Device Kit

Take Wi-Fi Further Through Existing Wiring.

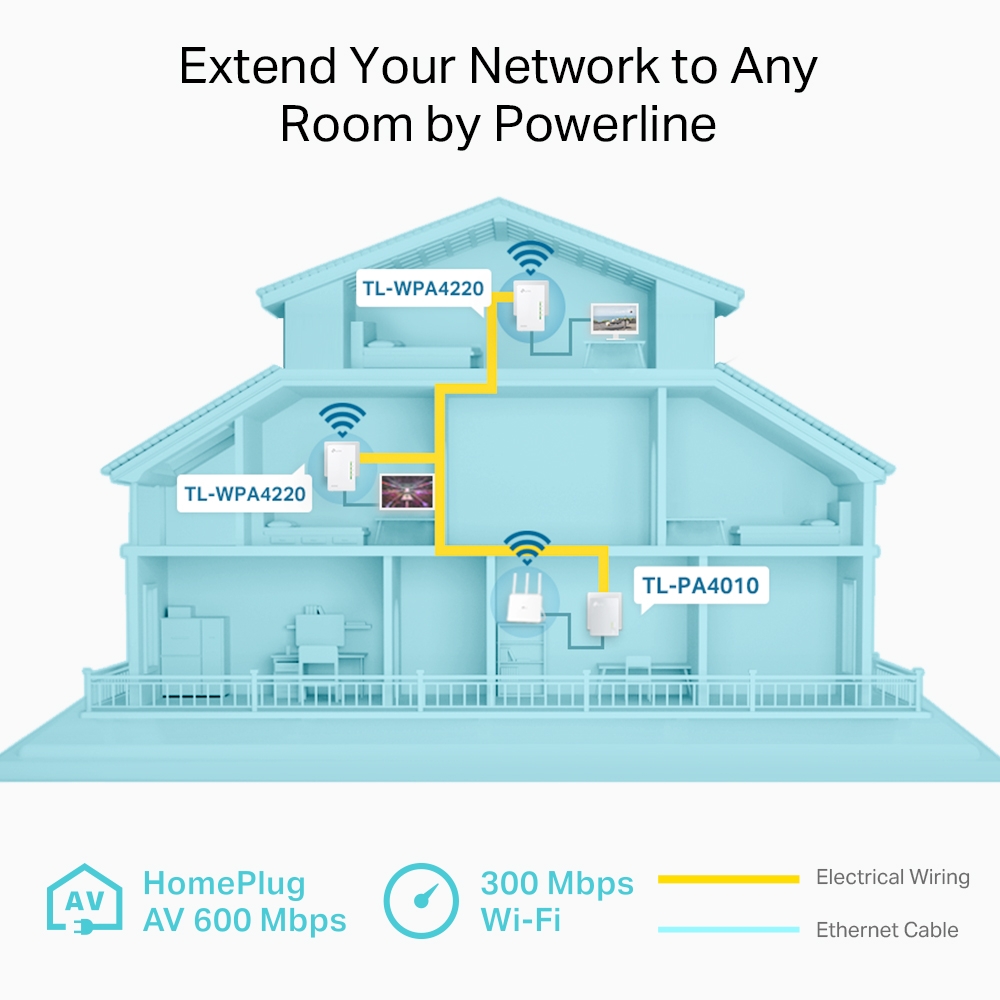

The TP-Link TL-WPA4220 TKIT extends wired and wireless connectivity to rooms where the router’s signal may struggle to reach. The three-device kit includes one TL-PA4010 adapter for connection to the router and two TL-WPA4220 Wi-Fi extenders for placement around the home or office. HomePlug AV2 technology delivers theoretical powerline rates of up to 600Mbps through compatible electrical wiring, while each extender provides 2.4GHz Wi-Fi speeds of up to 300Mbps. Wi-Fi Clone copies the router’s network name and password and Auto-Sync helps keep wireless settings consistent across the powerline network. Five Fast Ethernet ports accommodate smart TVs, computers, game consoles and other wired devices, while Pair buttons and 128-bit AES encryption simplify the creation of a secure powerline connection.

FEATURES

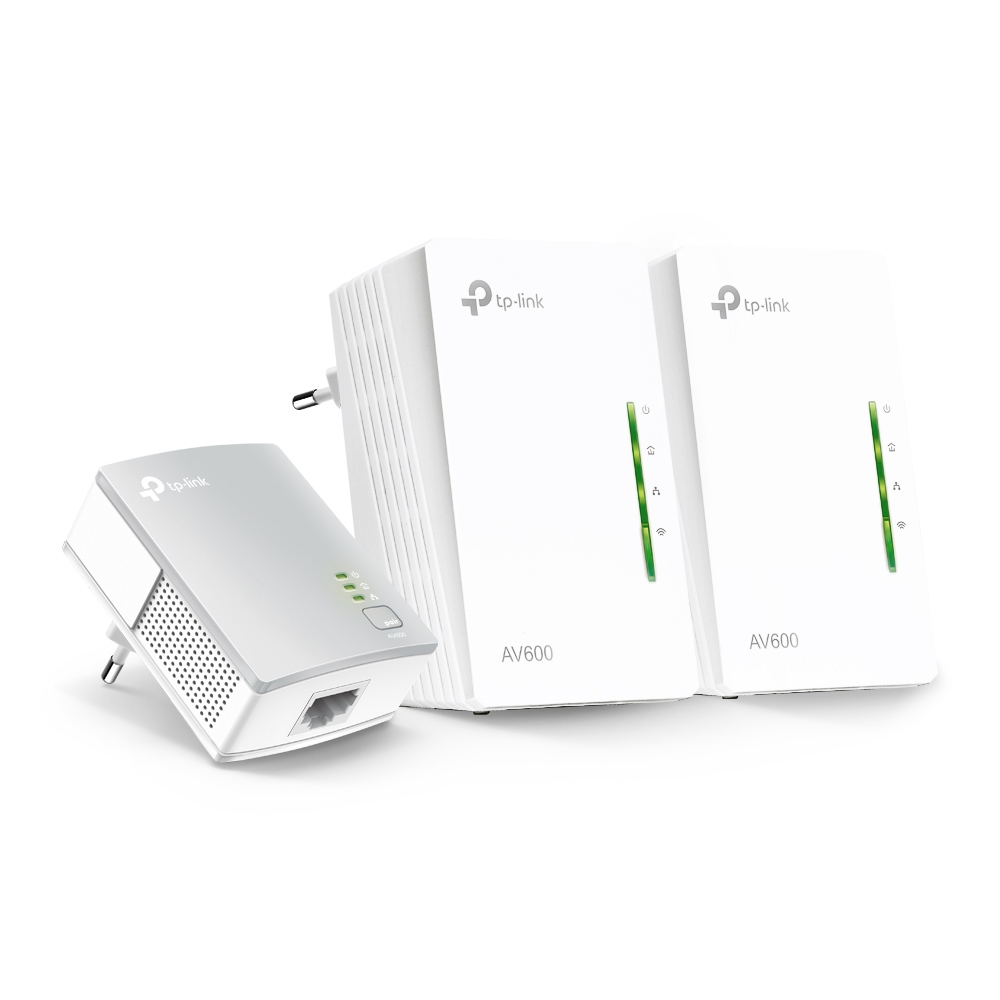

• Complete Three-Device Kit – Includes one wired powerline adapter and two powerline Wi-Fi extenders
• AV600 Powerline Connectivity – Delivers theoretical powerline link rates of up to 600Mbps through compatible electrical wiring
• 300Mbps Wi-Fi – Extends 2.4GHz wireless connectivity to previously difficult-to-reach areas
• One-Touch Wi-Fi Clone – Copies the router’s wireless network name and password for simpler configuration
• Automatic Wi-Fi Synchronisation – Applies compatible wireless-setting changes across the powerline network
• Five Fast Ethernet Ports – Provides two ports on each Wi-Fi extender and one port on the wired adapter
• Up to 300m Powerline Range – Extends connectivity across compatible wiring on the same electrical circuit

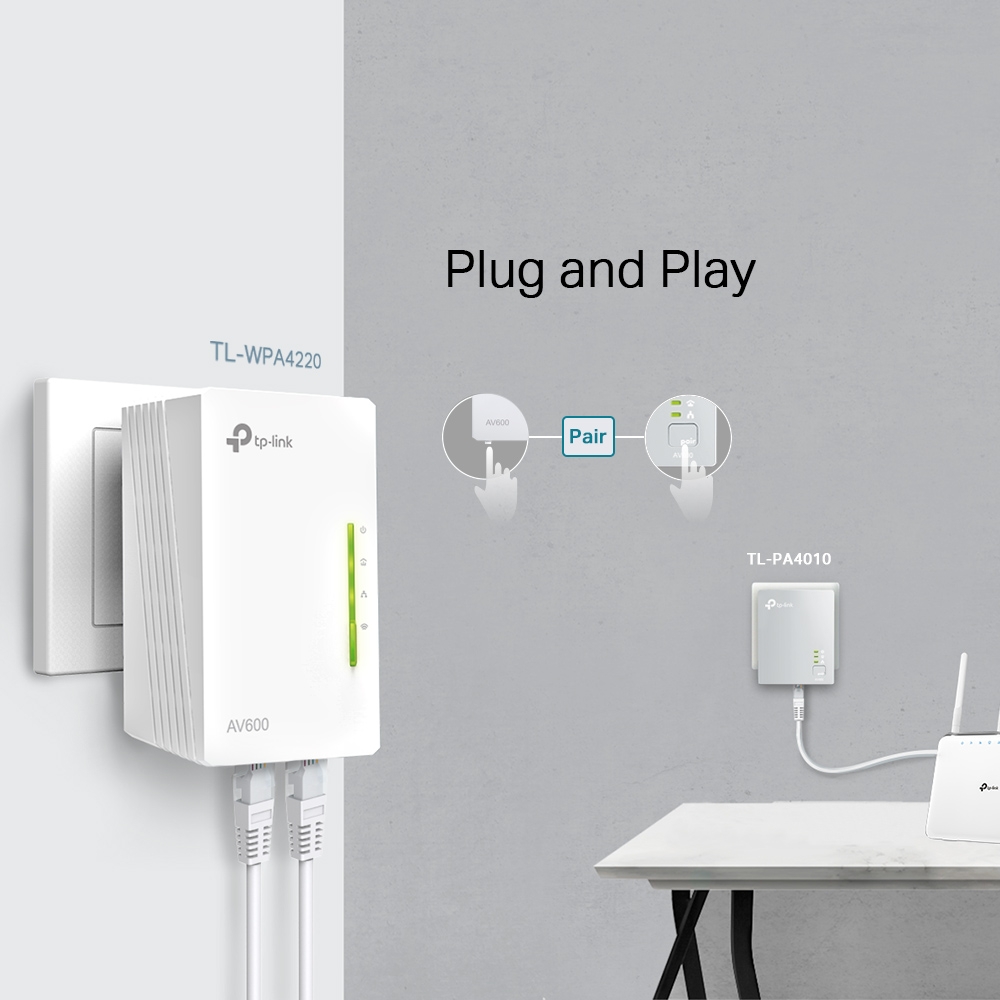

• Plug-and-Play Installation – Establishes a powerline connection without new network cabling or drilling
• Secure Network Pairing – Pair buttons establish a powerline network protected by 128-bit AES encryption
• Convenient Management – Supports the TP-Link tpPLC app and desktop utility for monitoring and configuration

SPECIFICATIONS

GENERAL

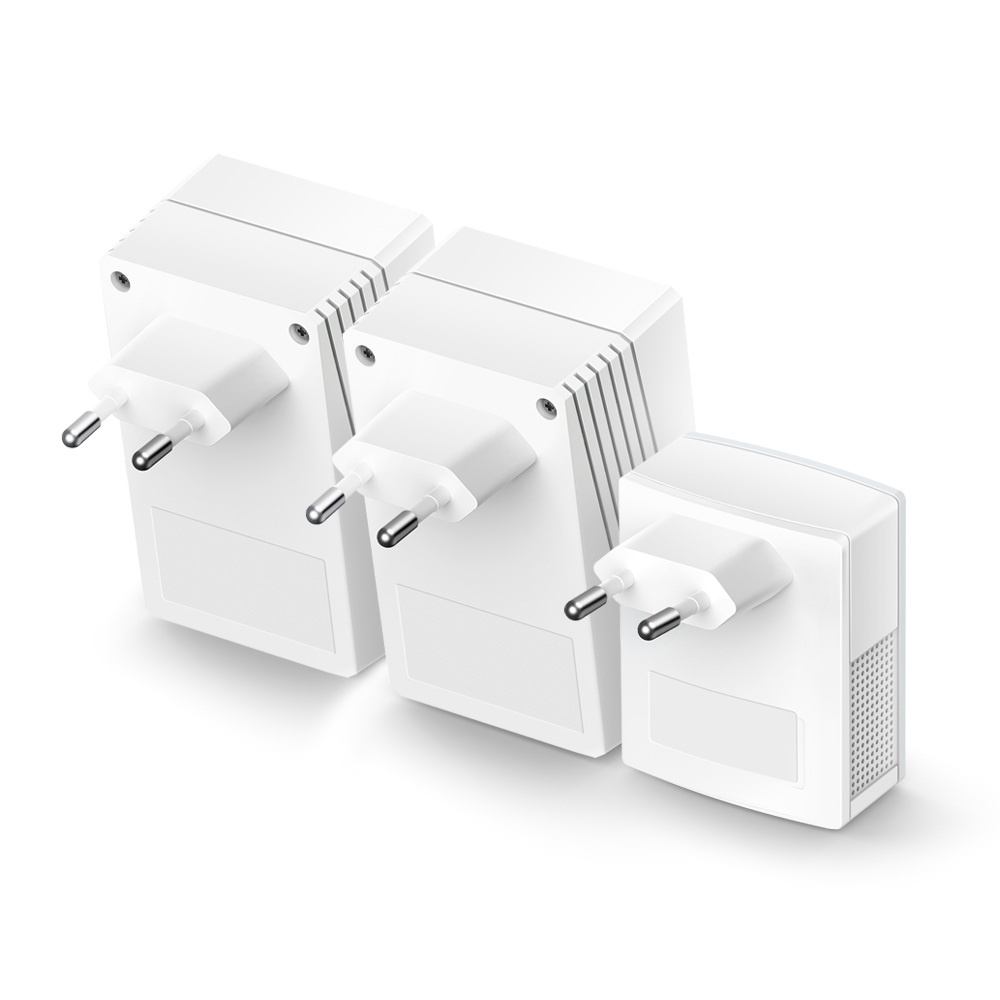

• Kit Configuration: 2× TL-WPA4220 Wi-Fi Extenders and 1× TL-PA4010 Powerline Adapter

POWERLINE

• Powerline Standards: HomePlug AV2 and IEEE 1901
• Maximum Powerline Signal Rate: Up to 600Mbps
• Powerline Range: Up to 300m over compatible electrical wiring
• Modulation Technology: OFDM
• Compatibility: HomePlug AV and HomePlug AV2 Powerline Devices
• Multicast Support: IGMP v1, v2 and v3

WIRELESS

• Wireless Standards: IEEE 802.11b/g/n
• Wireless Band: 2.4GHz
• Maximum Wireless Signal Rate: Up to 300Mbps
• Wireless Security: WEP, WPA-PSK and WPA2-PSK
• Wireless Functions: Wi-Fi Clone, Auto-Sync, WMM and Guest Network

INTERFACES AND CONTROLS

• TL-WPA4220 Ethernet Ports: 2× 10/100Mbps per Extender
• TL-PA4010 Ethernet Ports: 1× 10/100Mbps
• Total Ethernet Ports: 5×
• Buttons: Pair, Reset and Wi-Fi/Wi-Fi Clone
• LED Indicators: Power, Powerline, Ethernet and Wi-Fi

MANAGEMENT

• Mobile Management: TP-Link tpPLC App for Android and iOS
• Desktop Management: TP-Link tpPLC Utility
• Management Functions: Powerline Speed Monitoring, LED Control and Network Configuration

POWER

• TL-WPA4220 Power Consumption: 5.6W Maximum, 5.2W Typical per Unit
• TL-PA4010 Power Consumption: 2.6W Maximum, 2.3W Typical

PHYSICAL

• TL-WPA4220 Dimensions: 54 × 40 × 94mm
• TL-PA4010 Dimensions: 52 × 28.5 × 65mm

ENVIRONMENTAL

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing

COMPLIANCE

• Certifications: CE and RoHS

NOTES

• All powerline devices must be connected to the same electrical circuit
• Connect the devices directly to wall outlets; multiplugs can reduce performance or cause connection loss
• The 10/100Mbps Ethernet interfaces limit the maximum wired connection speed to 100Mbps
