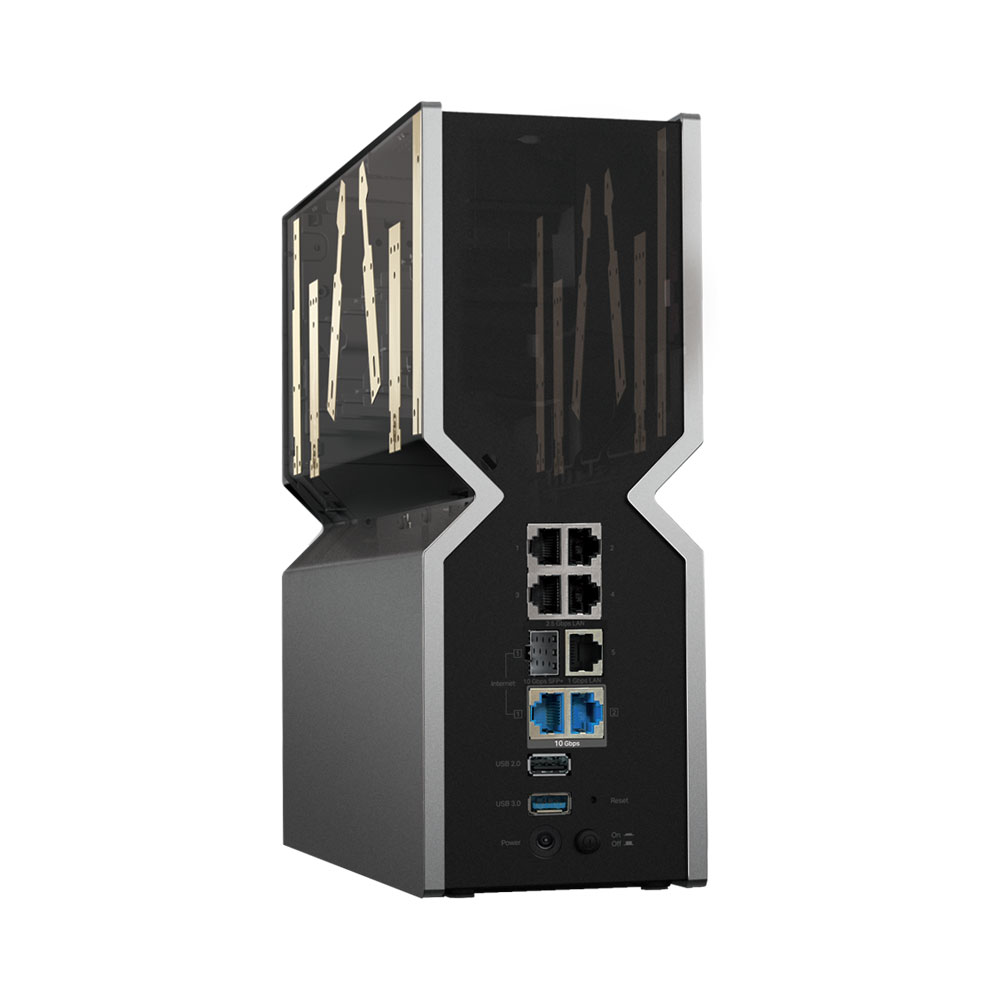

TP-Link Archer BE900 BE24000 Quad-Band Wi-Fi 7 Router with Dual 10Gbps Ports

Elite Wireless and Wired Performance for the Connected Home.

The TP-Link Archer BE900 is a quad-band Wi-Fi 7 router designed for demanding homes with multi-gigabit internet services, high device counts and bandwidth-intensive applications. It combines theoretical wireless speeds of up to 24.4Gbps across 6.0Ghz, dual 5.0Ghz and 2.4GHz bands, with 320MHz channels and 4K-QAM for compatible Wi-Fi 7 devices. Two versatile 10Gbps WAN/LAN connections support copper and fibre network options, complemented by four 2.5Gbps LAN ports and a Gigabit LAN port. Twelve internally positioned antennas, Beamforming and a quad-core processor help maintain broad, responsive coverage. EasyMesh compatibility supports seamless whole-home expansion, while HomeShield, private IoT and guest networks strengthen network control. A touchscreen, customisable LED screen, USB file sharing, VPN support and Tether app management complete this powerful home-networking platform.

FEATURES

• BE24000 Quad-Band Wi-Fi 7 – Delivers theoretical combined wireless speeds of up to 24.4Gbps across four bands
• Advanced Wi-Fi 7 Performance – Supports 320MHz channels and 4K-QAM with compatible devices
• Dual 10Gbps Connectivity – Combines a 10Gbps RJ45 port with a 10Gbps SFP+/RJ45 combo interface
• Multi-Gigabit LAN – Provides four 2.5Gbps LAN ports with support for up to 5Gbps link aggregation
• High Device Capacity – Uses 16 streams, MU-MIMO and OFDMA to support more than 250 connected devices
• Broad Wireless Coverage – Twelve internal antennas, Beamforming and high-power front-end modules strengthen signal distribution
• EasyMesh-Compatible – Creates a unified whole-home network with compatible EasyMesh routers and range extenders
• Interactive Displays – A touchscreen provides convenient controls while the LED screen displays status and custom content
• Comprehensive Network Security – Includes HomeShield, WPA3, guest networks, access control and a separate IoT network
• Flexible Network Management – Supports the TP-Link Tether app, web management, VPN operation and voice assistants

SPECIFICATIONS

GENERAL

• Wi-Fi Class: BE24000
• Processor: Quad-Core CPU
• Wireless Bands: 6.0Ghz, 5.0Ghz-1, 5.0Ghz-2 and 2.4GHz
• Spatial Streams: 16
• Operating Modes: Router Mode, Access Point Mode

WIRELESS

• 6.0Ghz Wireless Speed: Up to 11,520Mbps
• 5.0Ghz-1 Wireless Speed: Up to 5,760Mbps
• 5.0Ghz-2 Wireless Speed: Up to 5,760Mbps
• 2.4GHz Wireless Speed: Up to 1,376Mbps
• Combined Wireless Speed: Up to 24.4Gbps
• Maximum Channel Width: 320MHz on 6.0Ghz
• Modulation: 4K-QAM
• MU-MIMO: 4×4
• OFDMA: Supported
• Airtime Fairness: Supported
• Beamforming: Supported
• DFS: Supported
• Smart Connect: Supported
• Client Capacity: 250+ Devices
• Antennas: 12× Optimally Positioned Internal Antennas
• Front-End Modules: High-Power FEM
• Mesh Technology: EasyMesh-Compatible

WIRELESS STANDARDS

• 6.0Ghz Standards: IEEE 802.11be/ax
• 5.0Ghz Standards: IEEE 802.11be/ax/ac/n/a
• 2.4GHz Standards: IEEE 802.11be/ax/n/b/g

ETHERNET

• 10Gbps RJ45 Port: 1× WAN/LAN
• 10Gbps Combo Port: 1× SFP+/RJ45 WAN/LAN Internet Port
• 2.5Gbps LAN Ports: 4×
• Gigabit LAN Port: 1×
• Link Aggregation: Up to 5Gbps Using Two Compatible 2.5Gbps LAN Ports
• Automatic Internet-Port Selection: Supported

USB

• USB Ports: 1× USB3.0, 1× USB2.0
• Supported Partition Formats: NTFS, exFAT, HFS+ and FAT32
• FTP Server: Supported
• Media Server: Supported
• Samba Server: Supported
• Local Storage Sharing: Supported
• Remote USB Storage Access: Supported

DISPLAYS AND CONTROLS

• Touchscreen: Yes
• LED Screen: Yes
• LED Screen Content: Time, Weather, Text, Emojis, Graphics and Animations
• Custom LED Graphics: 3,000+
• Physical Buttons: Power On/Off and Reset
• Touchscreen Controls: Wi-Fi On/Off, WPS, Guest Network, Firmware Update, Reboot, Operating Mode and Display Settings

SECURITY

• Wi-Fi Encryption: WPA, WPA2, WPA3 and WPA/WPA2-Enterprise
• Enterprise Authentication: IEEE 802.1x
• Firewall: SPI
• Access Control: Supported
• IP and MAC Binding: Supported
• Application Layer Gateway: Supported
• HomeShield Security: Supported
• Real-Time IoT Protection: Supported
• Malicious-Site Blocking: Supported
• Intrusion Prevention: Supported
• DDoS Attack Prevention: Supported
• Home Network Scanner: Supported
• Private IoT Network: Supported
• Guest Networks: Separate 6.0Ghz, 5.0Ghz-1, 5.0Ghz-2 and 2.4GHz Networks

VPN

• VPN Client: OpenVPN, PPTP, L2TP and WireGuard
• VPN Server: OpenVPN, PPTP, L2TP and WireGuard
• Simultaneous VPN and Standard Internet Connections: Supported

SOFTWARE AND MANAGEMENT

• Network Protocols: IPv4 and IPv6
• Management Interfaces: TP-Link Tether App and Webpage
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP and L2TP
• Quality of Service: Device-Based QoS
• Parental Controls: HomeShield Parental Controls
• Cloud Services: Automatic Firmware Upgrade, TP-Link ID and DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ and UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN
• DHCP: Server, Client List and Address Reservation
• DDNS Services: TP-Link, NO-IP and DynDNS
• Voice Assistant Compatibility: Amazon Alexa and Google Assistant

POWER

• Power Input: 15V DC, 5A
• Power Adapter: Included

PHYSICAL

• Dimensions: 96 × 302 × 262.5mm
• Installation Orientation: Vertical

ENVIRONMENTAL

• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH, Non-Condensing

COMPLIANCE

• Certifications: CE, FCC and RoHS

SYSTEM REQUIREMENTS

• Browser: JavaScript-Enabled Web Browser
• Internet Connection: Compatible Modem or Gateway and Internet-Service Subscription, Where Required

NOTES

• Wi-Fi 7, 320MHz channels, 4K-QAM, OFDMA and MU-MIMO require compatible client devices
• The 320MHz channel width is available only on 6.0Ghz and may be restricted in certain countries or regions
• The SFP+ and RJ45 connections within the 10Gbps combo port cannot operate simultaneously
• 10Gbps internet access requires a compatible service plan, modem, cabling and connected equipment
• Link aggregation requires a compatible connected device with two Ethernet ports
• HomeShield includes a free Basic plan; additional HomeShield Pro features require a paid subscription
• Feature availability may require firmware updates
