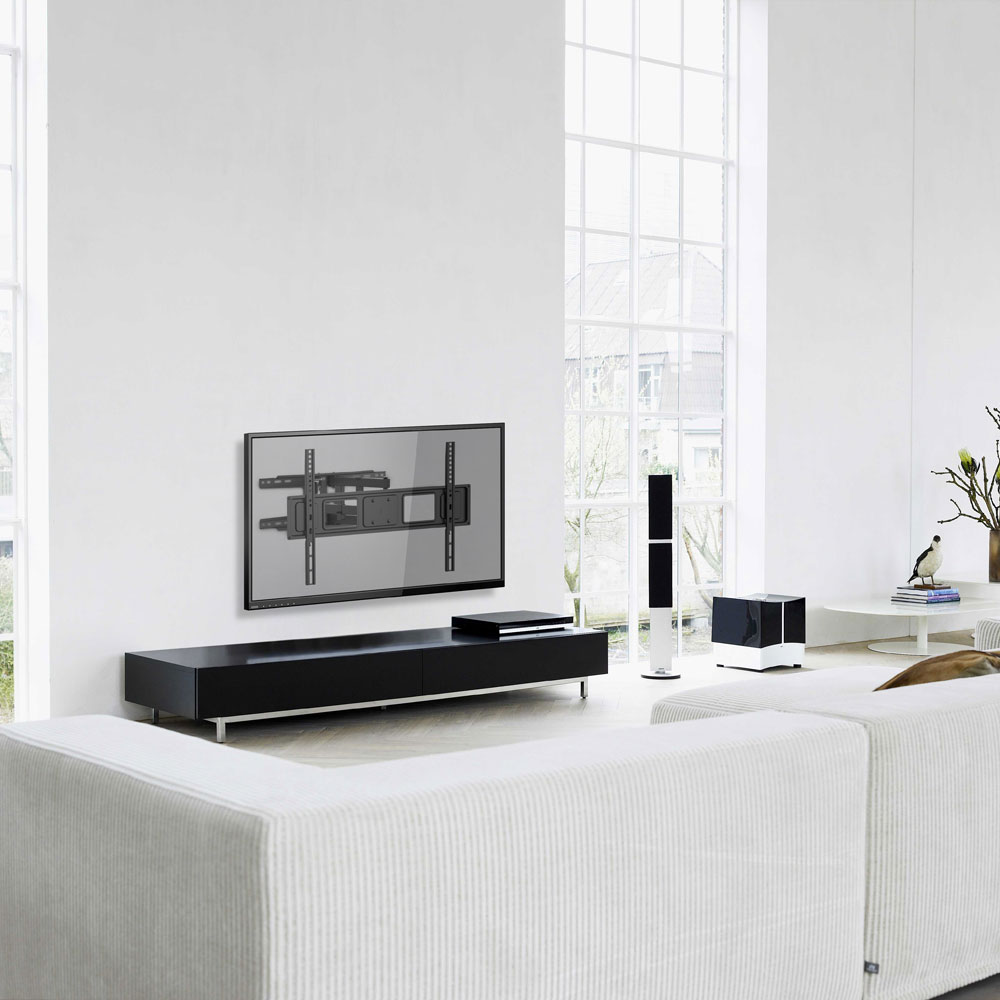

LinkQnet LPA63-466 37-80" Full-Motion TV Mount Bracket

Flexible Positioning for Large Flat and Curved TVs.

The LinkQnet LPA63-466 is a full-motion wall-mount bracket designed for compatible 37~80" flat and curved TVs weighing up to 40kg. Its articulating steel arms extend the screen from 62~468mm from the wall and provide +60~-60° swivel adjustment for viewing from different positions. A +5~-15° tilt range helps improve the viewing angle and reduce glare, while +3~-3° levelling allows the screen alignment to be corrected after installation. The bracket supports VESA and universal mounting patterns up to 600 × 400mm. A detachable mounting panel, direction indicator and integrated cable management help simplify installation and maintain a tidy appearance. The wide wall plate supports installation on suitable solid walls or reinforced framed walls with structural fixing centres spaced 406 or 450mm apart.

FEATURES

• 37~80" TV Compatibility – Supports a wide range of compatible flat and curved televisions
• 40kg Weight Capacity – Provides stable support for compatible large-screen TVs
• Full-Motion Adjustment – Combines extension, tilt and swivel movement for flexible positioning
• Extended Viewing Range – Positions the screen from 62~468mm away from the wall
• Adjustable Tilt – Provides +5~-15° adjustment to improve the viewing angle and reduce glare
• Wide Swivel Range – Provides +60~-60° horizontal adjustment for viewing from different positions
• Post-Installation Levelling – Allows +3~-3° correction to align the screen after mounting
• Wide VESA Compatibility – Supports mounting patterns up to 600 × 400mm
• Flat and Curved TV Support – Accommodates compatible flat-panel and curved televisions
• Detachable Mounting Panel – Helps simplify TV attachment during installation
• Integrated Cable Management – Routes cables along the mounting arms for a cleaner appearance
• Wide Wall-Plate Installation – Supports suitable solid walls or reinforced framed walls with 406 or 450mm fixing centres

SPECIFICATIONS

SCREEN COMPATIBILITY

• Compatible Screen Size: 37~80"
• Compatible Screen Types: Flat and Curved TVs
• Weight Capacity: 40kg
• Mounting Pattern: VESA and Universal
• VESA Compatibility: 75 × 75, 100 × 100, 100 × 150, 150 × 100, 100 × 200, 200 × 100, 150 × 150, 200 × 200, 300 × 200, 400 × 200, 300 × 300, 400 × 300, 400 × 400 and 600 × 400mm
• Maximum Mounting Pattern: 600 × 400mm

MOVEMENT

• Distance from Wall: 62~468mm
• Tilt Range: +5~-15°
• Swivel Range: +60~-60°
• Screen Levelling: +3~-3°

CONSTRUCTION

• Material: Steel
• Surface Finish: Powder Coating
• Colour: Fine-Texture Black
• Dimensions: 468 × 655 × 420mm
• Bracket Arm Steel Thickness: 1.5mm
• VESA Panel Steel Thickness: 1.8mm
• Wall Plate Steel Thickness: 2mm
• Arm Tube Size: 30 × 20 × 1.5mm

INSTALLATION

• Compatible Wall Types: Suitable Solid Wall or Reinforced Framed Wall
• Framed-Wall Fixing Centres: 406 or 450mm
• Mounting Panel: Detachable
• Wall Plate Type: Fixed
• Direction Indicator: Yes
• Cable Management: Yes
